Vertical alignment of columns

Featured Lock Resolved Issue
Hello

Searched the forum but couldnt find a topic on this. Is there a way to vertically align columns or Add-ons in page builder? By default, the column content is centered, but would like to see if I can get the column content to vertically align with each other. Thanks

7 Answers

Pavel

More than a month ago #Permalink
If I understand the question correctly, the discussion went the wrong way.
The vertical-align property is only used for inline elements or table cells. Columns in SP PB are block bootstrap elements and you can not apply the vertical-align property to them.

By default, the content inside the columns is aligned to the top. The columns are always of the same height, regardless of the content in them. The height is determined by the larger content.
http://dl4.joxi.net/drive/2018/08/24/0008/0401/545169/69/4b2925f6e8.png

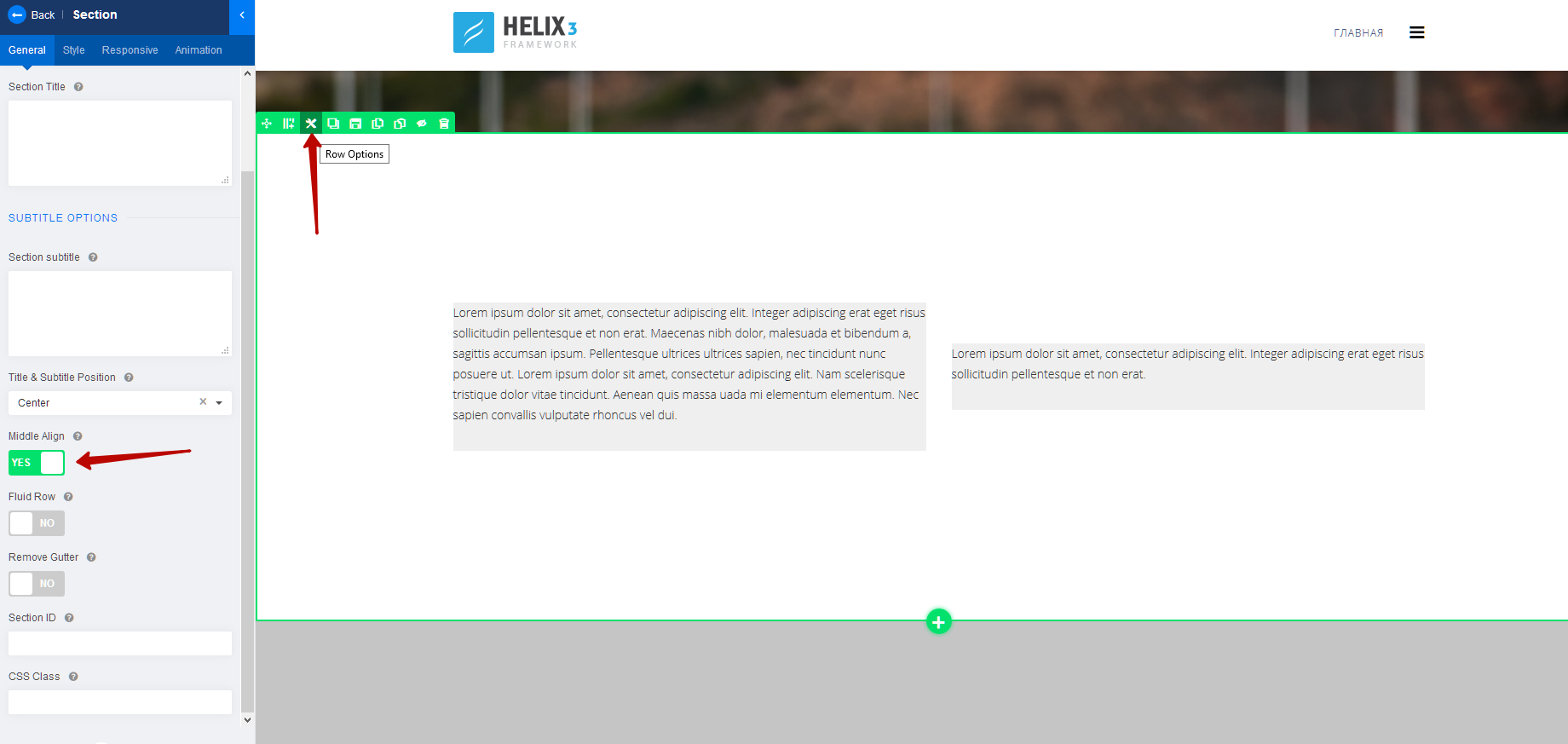

If you want to align the columns and addons, that are inside the columns, vertically, you should click the middle align button in the section settings.
http://dl3.joxi.net/drive/2018/08/24/0008/0401/545169/69/d996397617.png
In order to align the blocks like that on another, you should perform the following actions:
Add a class or ID to the section.
http://dl4.joxi.net/drive/2018/08/24/0008/0401/545169/69/d43f75060d.png

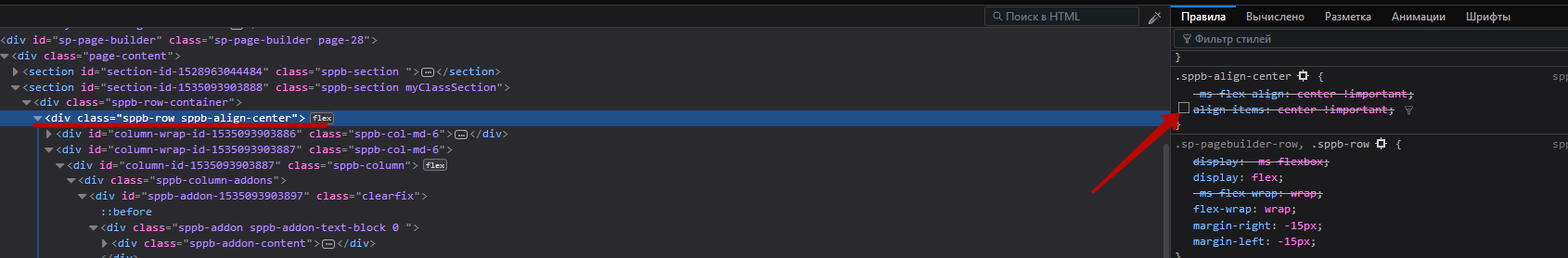

Find the container with the code inspector, which centers the blocks in the middle, disable the original align-items property,
http://dl4.joxi.net/drive/2018/08/24/0008/0401/545169/69/38cbcae36d.png

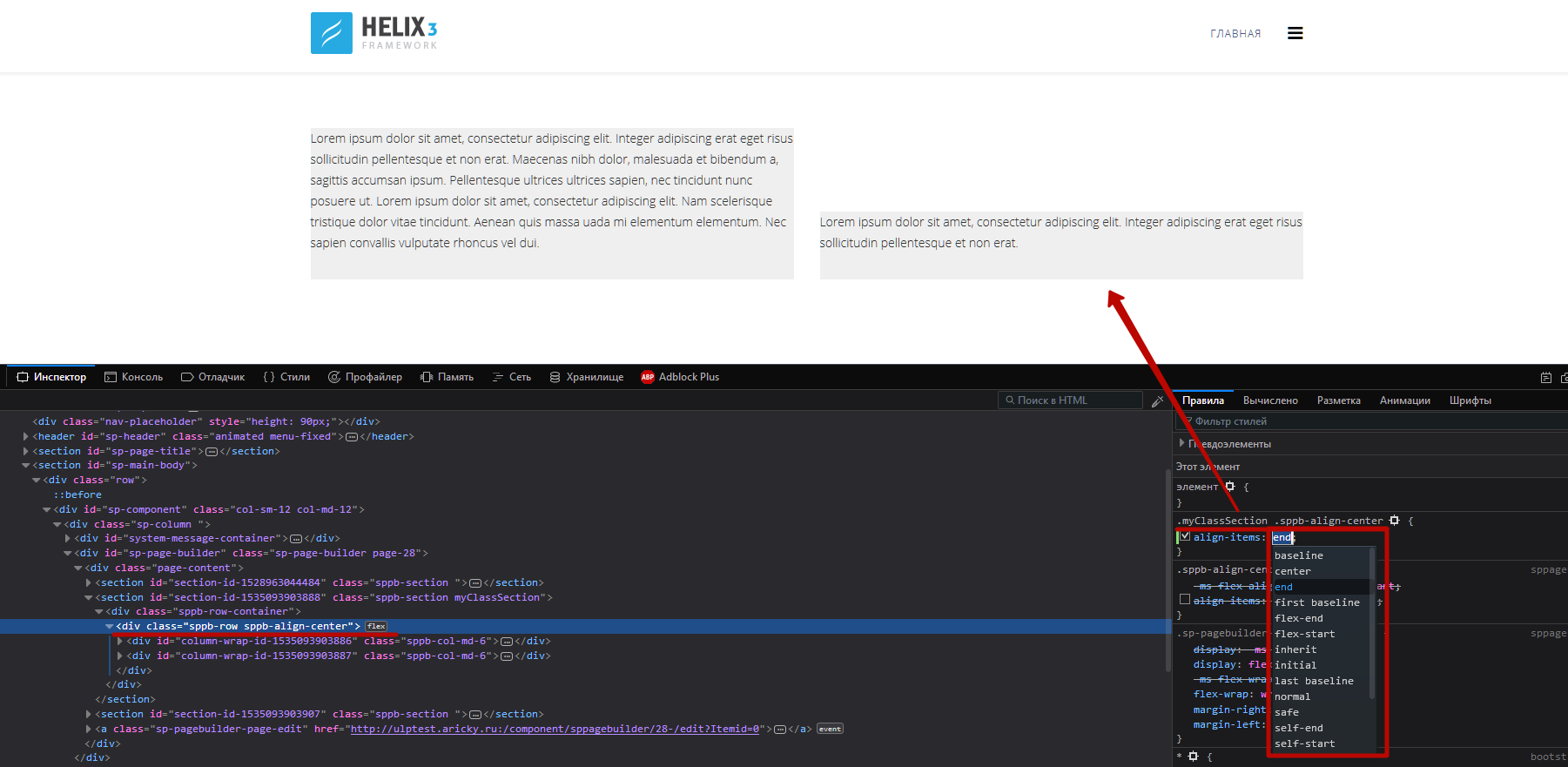

copy its selector and add it after your class. Then you can use the align-items property and use one of its possible values.
http://dl3.joxi.net/drive/2018/08/24/0008/0401/545169/69/322188f254.png
The final code from my example looks like this:

.myClassSection .sppb-align-center {
align-items: end !important;
}

Paul Frankowski - Staff

More than a month ago #Permalink
Hi,
maybe you have to use: https://www.w3schools.com/cssref/pr_pos_vertical-align.asp
for selected class

Mike Lawson

More than a month ago #Permalink
Paul

I think this is the right path, but I havent been able to find the right snippet. This is what I tried in custom CSS


#sppb-column {
vertical-align: text-top !important;
}


Doesnt work, any alternatives? Thanks

Paul Frankowski - Staff

More than a month ago #Permalink
You have to talk with Front-end developer.
---
Sorry, I made mistake, The vertical-align CSS property specifies the vertical alignment of an inline or table-cell box ONLY, not columns blocks.

Read about: https://developer.mozilla.org/en-US/docs/Web/CSS/align-items

Mike Lawson

More than a month ago #Permalink
Pavel & Frank

Thanks for your input, very helpful (and yes, it worked). Im sure this thread will come in handy for others as well.

Paul Frankowski - Staff

More than a month ago #Permalink
I asked to add this option into row/columns settings - it should be easy to implement.

Thanks.
